Content Library

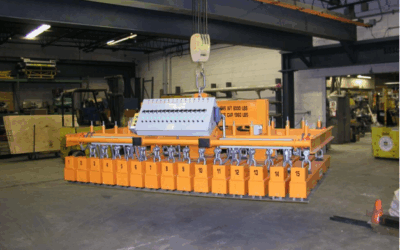

Product Spotlight: Permadur Multiple Part Handling Magnet Series 115
Multiple Part Handling Magnet Systems Permadur Multiple Part Handling Magnet Systems can provide higher productivity and lower costs for both Steel Fabricators and Steel Service Centers by reducing the Material Handling time required to offload Cut Parts and Skeleton....

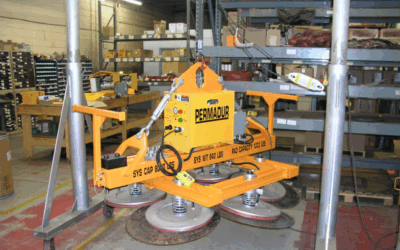

Product Spotlight: Permadur Small Plate Vacuum Lifting System Series 406-S
Small Plate Vacuum Lifting Systems Permadur Vacuum Lifting Systems provide a light, economical way to handle Aluminum, SS, and Carbon Steel Plate, using a wide range of Vacuum Pump sizes, Pad sizes and material to support customization for the individual customer's...

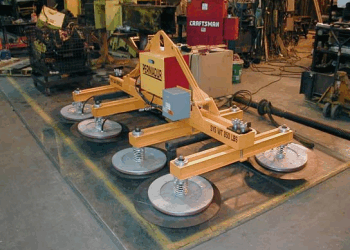

Product Spotlight: Permadur Large Plate Vacuum Lifting System Series 612
Large Plate Handling Systems Permadur Large Plate Handling Systems are designed to handle Non-Magnetic Materials and Steel Plates with 3/16″ to 2″ thickness, offering the following options: Radio Remote Controls Built-in Sit Down Legs Audible Low Vacuum Alarms Water...
Which Type of Lifting Magnet System is Right for the Job?
In a previous blog post, we provided a general overview for choosing the right permanent lifting magnet for a specific job/application. In this post, we’ll get a little more in depth to help you determine which lifting magnet system would be the most appropriate...

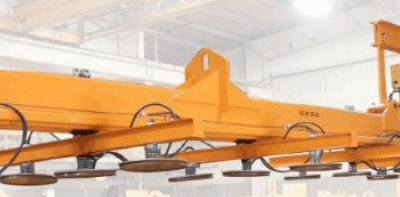

Product Spotlight: Permadur Large Plate Vacuum Lifting System Series 114
Large Plate Vacuum Lifting Systems Permadur Vacuum Lifting Systems provide a light, economical way to handle Aluminum, SS, and Carbon Steel Plate, using a wide range of Vacuum Pump sizes, Pad sizes and material to support customization for the individual customer’s...

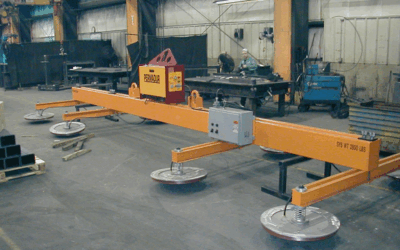

Product Spotlight: Permadur Small Plate Vacuum Lifting System Series 408
Small Plate Vacuum Lifting Systems Permadur Vacuum Lifting Systems provide a light, economical way to handle Aluminum, SS, and Carbon Steel Plate, using a wide range of Vacuum Pump sizes, Pad sizes and material to support customization for the individual customer's...
Product Documentation
Permadur Industries: family-owned below-the-hook lifting equipment leader since 1972, focused on safety, productivity, and efficiency from Hillsborough, NJ.
Permadur Vacuum Systems for safe handling of glass, aluminum, composites, and sheet goods—electric, air, or battery powered with custom pad arrangements.
Permadur Plate Handling Systems with fail-safe magnets for plate steel—AC or battery powered, selective controls, and single-sheet lift from stack.
Permadur Multiple Part Handling Systems for oxy, plasma, and laser tables—load plate and remove parts and skeletons in one lift to maximize torch-on time.
Permadur Lifting Magnets—electro-permanent (AC or battery) and rare-earth manual magnets for sheet, plate, block, rounds, and structural shapes.
Permadur Load Positioners—hydraulic hoist-to-load link for precision lift/lower up to 40,000 lbs with 3″–12″ stroke and <0.001" positioning accuracy.
Series 2550 with 50 BP-1600 magnets on a 30′ load beam — Manitowoc Crane 109 application.
PERMADUR Series 1530 plate/multiple part handling system with 30 BP-1600×48 magnets on a 10′ beam, row and magnet selectivity, Safety Indicator Lighting, and radio plus pendant controls.
PERMADUR Series 1326 plate/multiple part handling system with 26 BP-1600×48 magnets on a 20′ beam, row selectivity, Safety Indicator Lights, radio and pendant controls, and plate grabs.
PERMADUR Series 918 plate handling system with 18 TP-2000 magnets on a 36′ beam, fork truck or crane suspension, 24VDC battery power, and Safety Indicator Lighting.
PERMADUR Series 918 plate handling system with 18 FP-4000 magnets on a 54′ beam, double-hook mobile crane attachment, 24VDC battery power (~400 lifts), and Safety Indicator Lighting.
PERMADUR Series 824 plate handling system with 24 TP-2000 magnets on a 36′ beam, row and column selectivity, 460 VAC power, and Safety Indicator Lighting.
PERMADUR Series 816 plate handling system with 16 FP-4000 magnets on a 44′ beam, row selectivity, on-board 24 VDC battery power, and Safety Indicator Lighting.
PERMADUR Series 714 plate/disc/skeleton handling system with 14 TP-2000 magnets on a 25′ beam, disc/skel ON modes, 460 VAC power, and Safety Indicator Lighting.
Permadur Series 618 plate/strip vacuum handling system with 1500 Power Pac, fixed sling, strip selector valve, and 6 swivel crossarms.
PERMADUR Series 612 and Series 408 plate handling systems with 1500 and 750 Power Pacs, shared-crane suspension, and ON/OFF/OFF hoist/radio interface.
PERMADUR Series 612 thin plate handling with BPR-350 ElectroPerm magnets for single-plate lifts off stack down to 16–18 ga., up to 1″ thick (2100# max.).
PERMADUR Series 612 plate handling system with 12 TP-2000 magnets on a 36′ beam, row selectivity, on-board 24 VDC battery power, and Safety Indicator Lighting.
PERMADUR Series 612 jacket handling system with 3000 Power Pac, 12 VPN-16EL-30 pads on a 50′ beam, low headroom, and ON/OFF/OFF crane interface.
PERMADUR Series 515 plate/part handling system with 1500 Power Pac, VPN-20-30 and VPN-6SO-30 pads on a 10′ beam for 8′×12′ plate (up to 4″ thick).
PERMADUR Series 510 plate handling system with 10 FP-4000 magnets on a 14′ beam, row selectivity, 460 VAC power, and Safety Indicator Lighting.
PERMADUR Series 408 plate/part handling system with 1500 Power Pac, 8 VPN-24-30 pads on a 36′ beam for 10′×40′ plate, double-hook crane, 460 VAC.
PERMADUR Series 408 plate/part vacuum system with 1500 Power Pac, eight VPN-24-30 pads on a 36′ beam for 10′×40′ plate, 460 VAC, double-hook crane.
PERMADUR Series 406 plate/disc vacuum system: 330 Power Pac, six VPN-16-30 pads in a box frame for 64″ OD discs, 8000 lb capacity, 460 VAC.
PERMADUR Series 204 vacuum plate handling with 330 Power Pac, four VPN-24-30 pads on a 10′ beam for 6′×20′ plate, 8000# max, 115 VAC.
