Content Library

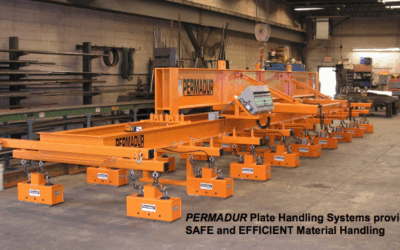

Product Spotlight: Permadur Large Plate Handling System Series 918 (TP-2000)
Large Plate Handling Systems Permadur Large Plate Handling Systems are designed to handle Non-Magnetic Materials and Steel Plates with 3/16″ to 2″ thickness, offering the following options: Radio Remote Controls Built-in Sit Down Legs Audible Low Vacuum Alarms Water...

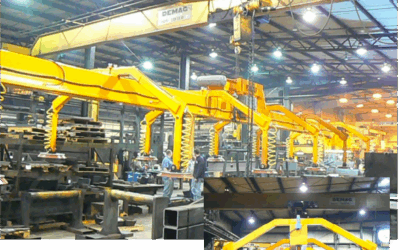

Product Spotlight: Permadur Vacuum Lifting Material Handling System Series 612
Custom Application Plate Handling Systems Permadur has designed many custom Vacuum Lifting Systems for particular industries such as rail car, tank, and tower manufacturers where the handling of rolled plate is required. Custom Application Plate Handling Systems are...
Product Spotlight: Permadur Multiple Part Handling Magnet Series 1530
Multiple Part Handling Magnet Systems Permadur Multiple Part Handling Magnet Systems can provide higher productivity and lower costs PARTY for both Steel Fabricators and Steel Permanent Service Centers by reducing the an Material Handling time required to offload Cut...

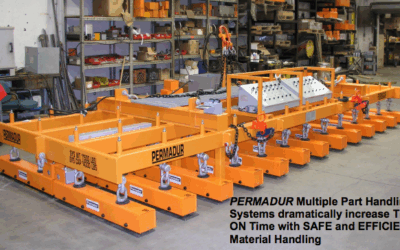

Product Spotlight: Permadur Multiple Part Handling Magnet Series 1326
Multiple Part Handling Magnet Systems Permadur Multiple Part Handling Magnet Systems can provide higher productivity and lower costs for both Steel Fabricators and Steel Service Centers by reducing the Material Handling time required to offload Cut Parts and Skeleton....
Product Spotlight: Permadur Small Plate Handling System Series 408
Small Plate Handling Systems Permadur Small Plate Handling Systems are designed to: Handle Plates ranging in Techniques thickness from Gauge Material to Magnet 1″ Handle Non-Magnetic Materials and Steel Offer Upender/Downender capability to support taking Plate from...
How To Choose the Right Permanent Lifting Magnet for the Job
Many end users may think that the process of selecting a below the hook lifting magnet Lifting is simple. It’s based off of the heaviest piece you are lifting, right? That certainly is one key component but there are many others to consider. Material surface...
Product Documentation
Permadur Industries: family-owned below-the-hook lifting equipment leader since 1972, focused on safety, productivity, and efficiency from Hillsborough, NJ.
Permadur Vacuum Systems for safe handling of glass, aluminum, composites, and sheet goods—electric, air, or battery powered with custom pad arrangements.
Permadur Plate Handling Systems with fail-safe magnets for plate steel—AC or battery powered, selective controls, and single-sheet lift from stack.
Permadur Multiple Part Handling Systems for oxy, plasma, and laser tables—load plate and remove parts and skeletons in one lift to maximize torch-on time.
Permadur Lifting Magnets—electro-permanent (AC or battery) and rare-earth manual magnets for sheet, plate, block, rounds, and structural shapes.
Permadur Load Positioners—hydraulic hoist-to-load link for precision lift/lower up to 40,000 lbs with 3″–12″ stroke and <0.001" positioning accuracy.
Series 2550 with 50 BP-1600 magnets on a 30′ load beam — Manitowoc Crane 109 application.
PERMADUR Series 1530 plate/multiple part handling system with 30 BP-1600×48 magnets on a 10′ beam, row and magnet selectivity, Safety Indicator Lighting, and radio plus pendant controls.
PERMADUR Series 1326 plate/multiple part handling system with 26 BP-1600×48 magnets on a 20′ beam, row selectivity, Safety Indicator Lights, radio and pendant controls, and plate grabs.
PERMADUR Series 918 plate handling system with 18 TP-2000 magnets on a 36′ beam, fork truck or crane suspension, 24VDC battery power, and Safety Indicator Lighting.
PERMADUR Series 918 plate handling system with 18 FP-4000 magnets on a 54′ beam, double-hook mobile crane attachment, 24VDC battery power (~400 lifts), and Safety Indicator Lighting.
PERMADUR Series 824 plate handling system with 24 TP-2000 magnets on a 36′ beam, row and column selectivity, 460 VAC power, and Safety Indicator Lighting.
PERMADUR Series 816 plate handling system with 16 FP-4000 magnets on a 44′ beam, row selectivity, on-board 24 VDC battery power, and Safety Indicator Lighting.
PERMADUR Series 714 plate/disc/skeleton handling system with 14 TP-2000 magnets on a 25′ beam, disc/skel ON modes, 460 VAC power, and Safety Indicator Lighting.
Permadur Series 618 plate/strip vacuum handling system with 1500 Power Pac, fixed sling, strip selector valve, and 6 swivel crossarms.
PERMADUR Series 612 and Series 408 plate handling systems with 1500 and 750 Power Pacs, shared-crane suspension, and ON/OFF/OFF hoist/radio interface.
PERMADUR Series 612 thin plate handling with BPR-350 ElectroPerm magnets for single-plate lifts off stack down to 16–18 ga., up to 1″ thick (2100# max.).
PERMADUR Series 612 plate handling system with 12 TP-2000 magnets on a 36′ beam, row selectivity, on-board 24 VDC battery power, and Safety Indicator Lighting.
PERMADUR Series 612 jacket handling system with 3000 Power Pac, 12 VPN-16EL-30 pads on a 50′ beam, low headroom, and ON/OFF/OFF crane interface.
PERMADUR Series 515 plate/part handling system with 1500 Power Pac, VPN-20-30 and VPN-6SO-30 pads on a 10′ beam for 8′×12′ plate (up to 4″ thick).
PERMADUR Series 510 plate handling system with 10 FP-4000 magnets on a 14′ beam, row selectivity, 460 VAC power, and Safety Indicator Lighting.
PERMADUR Series 408 plate/part handling system with 1500 Power Pac, 8 VPN-24-30 pads on a 36′ beam for 10′×40′ plate, double-hook crane, 460 VAC.
PERMADUR Series 408 plate/part vacuum system with 1500 Power Pac, eight VPN-24-30 pads on a 36′ beam for 10′×40′ plate, 460 VAC, double-hook crane.
PERMADUR Series 406 plate/disc vacuum system: 330 Power Pac, six VPN-16-30 pads in a box frame for 64″ OD discs, 8000 lb capacity, 460 VAC.
PERMADUR Series 204 vacuum plate handling with 330 Power Pac, four VPN-24-30 pads on a 10′ beam for 6′×20′ plate, 8000# max, 115 VAC.
