Manual Lifting Magnet REM-2500
$2,025.00
REM Models (for Flats and Rounds)
Product Specs
- Rated Capacity Flat: 2500 lbs.
- Rated Capacity Round: 1320 lbs.
- Magnet Weight: 101 lbs.
Product Features
✓ Advanced Rare Earth Magnet Technology
Engineered using high performance rare earth magnets to deliver exceptional lifting power and reliability.
✓ Compact, Lightweight Design
All models feature reduced weight, smaller overall dimensions, and improved value with compromising performance.
✓ No External Power Required
Permanent magnet operation eliminates the need for electrical power, reducing maintenance requirements and removing risks associated with power loss or wiring failures.
✓ High Safety Factor for Secure Lifting
3:1 Safety Factor providing a strong margin of safety and a dependable load handling performance.
Manually Controlled Permanent Lifting Magnets
REM Models
Manually Controlled Permanent Lifting Magnets — Flats & Rounds

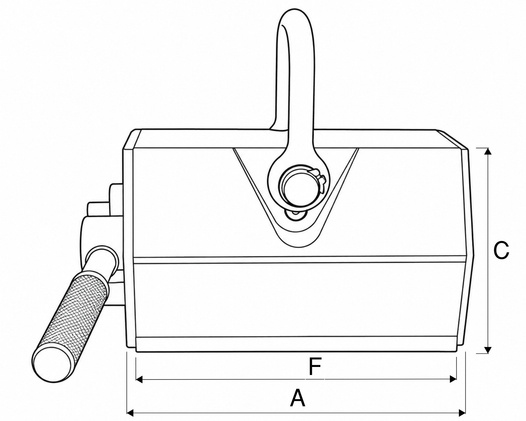

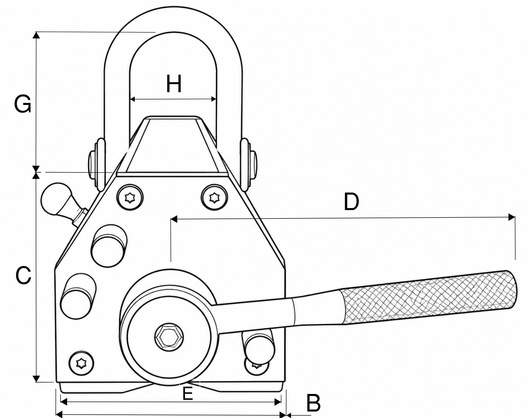

| Model # | Flat Steel Rating(s) |
Round Steel Rating(s) | Min. Thickness Req'd (in) |
Dimensions | Magnet Weight (lbs) |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated Capacity (lbs) |
Rated Lifting Cap (lbs) |
Max Dia. (in) |
Max Length (in) |
Overall Length (in) |
Pole Length (in) |
Overall Height (in) |
Overall Width (in) |
Pole Width (in) |
Pole Length (in) |
Bale Height (in) |
Bale Width (in) |
|||
| A | B | C | D | E | F | G | H | |||||||
| REM-250 | 250 | 132 | 6 | 20 | 9⁄16 | 4.2 | 3.3 | 5 | 4.8 | 2.4 | 2.8 | 1.8 | 1.2 | 5.5 |
| REM-800 | 800 | 400 | 9 7⁄8 | 32 | 1 | 7.1 | 6.1 | 6.2 | 7.3 | 3.5 | 3.7 | 2 | 1.6 | 19 |
| REM-1500 | 1500 | 800 | 13 7⁄8 | 48 | 1 1⁄8 | 10 | 8.8 | 8.4 | 10.4 | 4.5 | 4.7 | 3 | 2 | 46 |
| REM-2500 | 2500 | 1320 | 17 7⁄8 | 60 | 1 9⁄16 | 11.5 | 10.1 | 11.3 | 14.8 | 6.4 | 6.7 | 3.8 | 3.4 | 101 |
| REM-5000 | 5000 | 2640 | 21 5⁄8 | 70 | 2 1⁄8 | 16.6 | 15 | 14 | 20.3 | 8.5 | 8.5 | 4.1 | 4.8 | 260 |
Rated capacity is based on F2 Hot Rolled surface conditions. Contact Permadur for applicable derating factors when handling thinner plate or materials with varying surface conditions.
Product Description
The Permadur REM-2500 Manual Lifting Magnet provides a safe, reliable, and efficient solution for handling ferrous steel materials in fabrication shops, machine shops, manufacturing facilities, and industrial environments. Designed for ease of use, the REM-2500 allows operators to quickly lift, move, and position steel plates, parts, and components without the need for external power sources.
Using a simple manual lever mechanism, the REM-2500 creates a powerful magnetic hold for secure lifting while maintaining complete operator control. Its compact design makes it ideal for applications where space is limited, while its rugged construction ensures long-term durability in demanding industrial settings.
Unlike traditional lifting methods that rely on slings, chains, or manual handling, the REM-2500 helps improve workplace safety, reduce operator strain, and increase productivity by streamlining material movement throughout your operation.
Whether you're loading machines, moving cut parts, positioning steel plates, or transporting fabricated components, the REM-2500 delivers dependable performance you can count on every day.
Key Benefits
|
Typical Applications
|
Why Choose the REM-2500?When dependable lifting performance is critical, the REM-2500 provides a practical and cost-effective solution for handling steel materials safely and efficiently. Built with the quality and craftsmanship Permadur is known for, this manual lifting magnet helps operations improve safety, increase productivity, and keep materials moving. |
