Permadur provides a full range of lifting magnet solutions built to move steel safely, efficiently, and reliably. Designed for real-world industrial use, our magnets handle plate, blocks, structural shapes, and fabricated components across production, fabrication, and material-handling operations.
From advanced electro-permanent systems to rugged manual designs, every Permadur lifting magnet is engineered for long service life, consistent performance, and operator confidence.

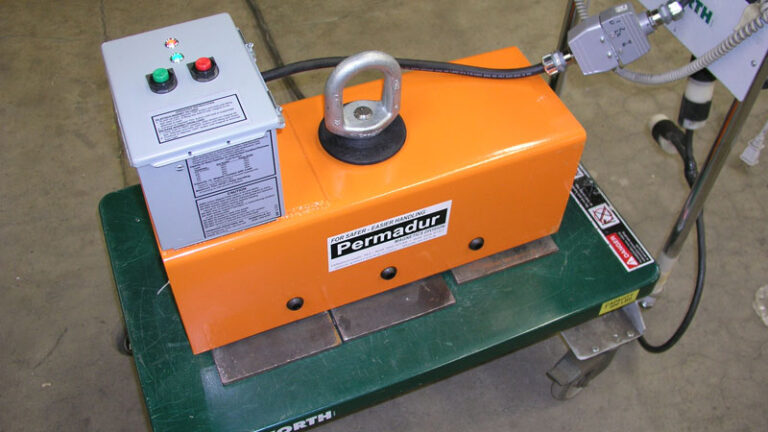

Electro-Permanent Lifting Magnets
Permadur electro-permanent lifting magnets combine the holding power of permanent magnets with simple electric ON/OFF control. Electrical power is needed only to engage or release the magnet. Once activated, the load remains securely held — even during a power interruption — providing a reliable, fail-safe lifting solution.
Electro-permanent magnet systems are available with AC power or rechargeable battery options and can be configured to suit a wide range of lifting capacities and material types.
TP (Tri-Polar) Series
Well suited for lifting sheet, plate, and block material with consistent surface contact
FP (Five-Pole) Series
Designed for larger surface areas and heavier plate or block applications
BP (Bipolar) Series
A versatile option for lifting plate, rounds, angle iron, and structural shapes, with optional custom pole shoes
- Power is required only to switch the magnet ON or OFF
- The load remains securely held in the event of a power loss
- Designed for dependable, energy-efficient operation
- Custom pole shoes available to match specific material shapes
- Control options include push-button panels and radio remote systems

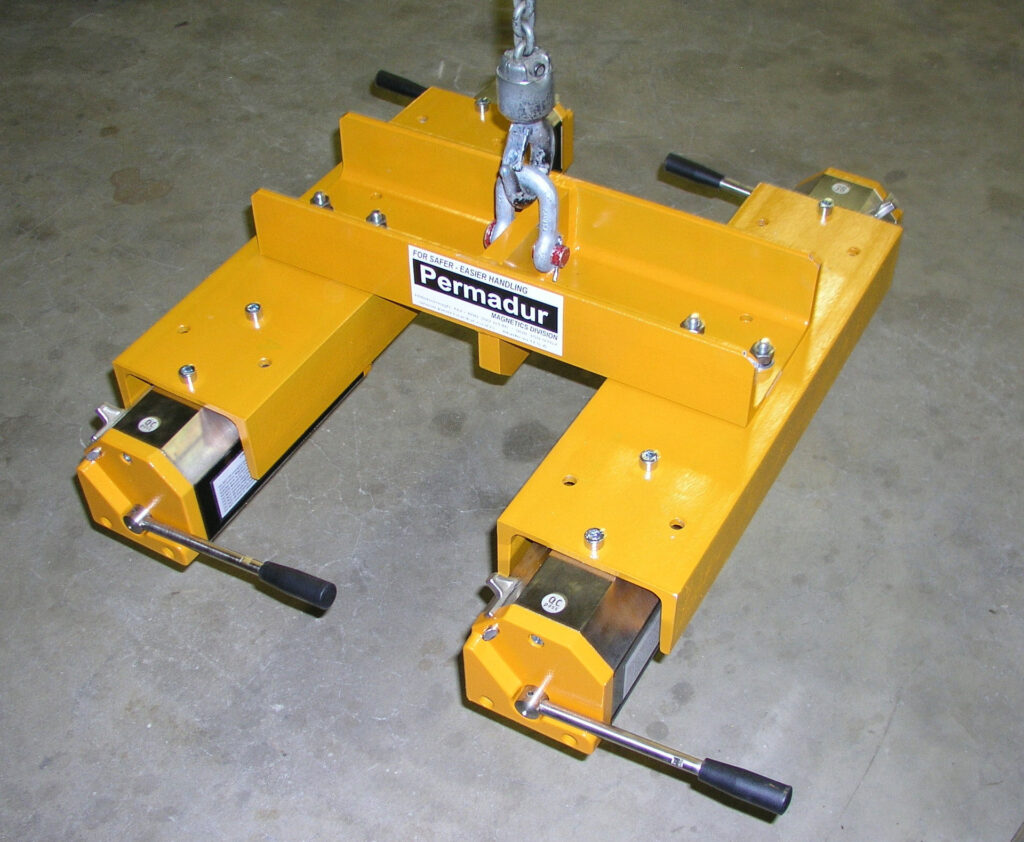

Manual Lifting Magnets
Permadur manual lifting magnets offer a straightforward and dependable solution for non-powered lifting. A mechanical lever engages the magnet, while an integrated safety lock helps prevent accidental release. With no electrical components, these magnets are easy to operate and require minimal maintenance.
Manufactured using high-performance rare-earth magnetic materials, manual magnets are compact, durable, and well suited for shop use, maintenance work, and portable applications.
BPM Series
Designed for repetitive lifting of flat materials such as sheet, plate, and blocks, featuring a fixed lifting eye
REM Series
Compact, portable magnets for individual lifts and maintenance tasks, featuring a pivoting lifting eye
- No electrical power required
- Durable, low-maintenance construction
- Simple lever operation with integrated safety lock
- Compact and portable design
Product Documents
Product Brief
Specifications

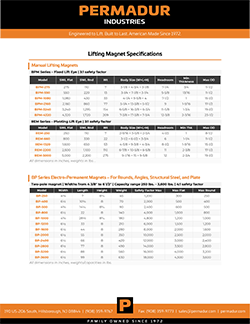

Lifting Magnet Specifications
Complete product specifications for all Permadur lifting magnet series

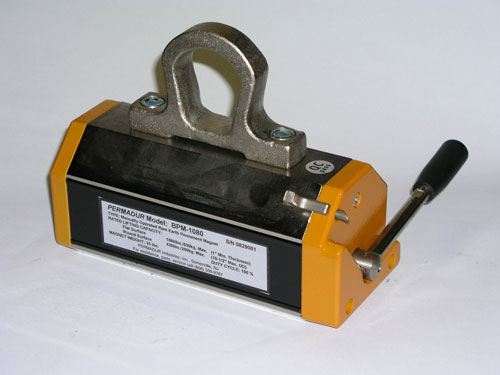

BPM Series — Manual Rare Earth Lifting Magnets
Key Features
- Tremendous Magnet Capacity to Weight Ratio
- Simple Lever Operation with Safety Lock
- 3 to 1 Safety Factor
- Extremely Compact, Light, Portable
- Utilizes NdFeB — Most Powerful Permanent Magnetic Material
- Great Durability & Economical
| Part Number | SWL Flat (lbs) | SWL Round (lbs) | Magnet Wt (lbs) | Body Size (W×L×H) | Headroom (in) | Min Thickness (in) | Max OD (in) |
|---|---|---|---|---|---|---|---|
| BPM-275 | 275 | 110 | 7 | 3-1/8 × 4-3/4 × 3-1/8 | 7-1/4 | 3/4 | 11-1/2 |
| BPM-550 | 550 | 220 | 13 | 3-1/4 × 7-1/8 × 3-1/4 | 5-5/8 | 13/16 | 11-1/2 |
| BPM-1080 | 1,080 | 430 | 33 | 4-1/4 × 9-5/8 × 4 | 7-1/2 | 1 | 15-1/2 |
| BPM-2160 | 2,160 | 860 | 77 | 5-1/4 × 13-3/8 × 5-1/2 | 9 | 1-9/16 | 17-1/2 |
| BPM-3240 | 3,240 | 1,295 | 154 | 6-5/8 × 16-3/8 × 6-3/4 | 11-5/8 | 1-3/4 | 19-1/2 |
| BPM-4320 | 4,320 | 1,720 | 209 | 7-3/8 × 17-3/8 × 7-3/4 | 12-3/8 | 2-3/16 | 23-1/2 |

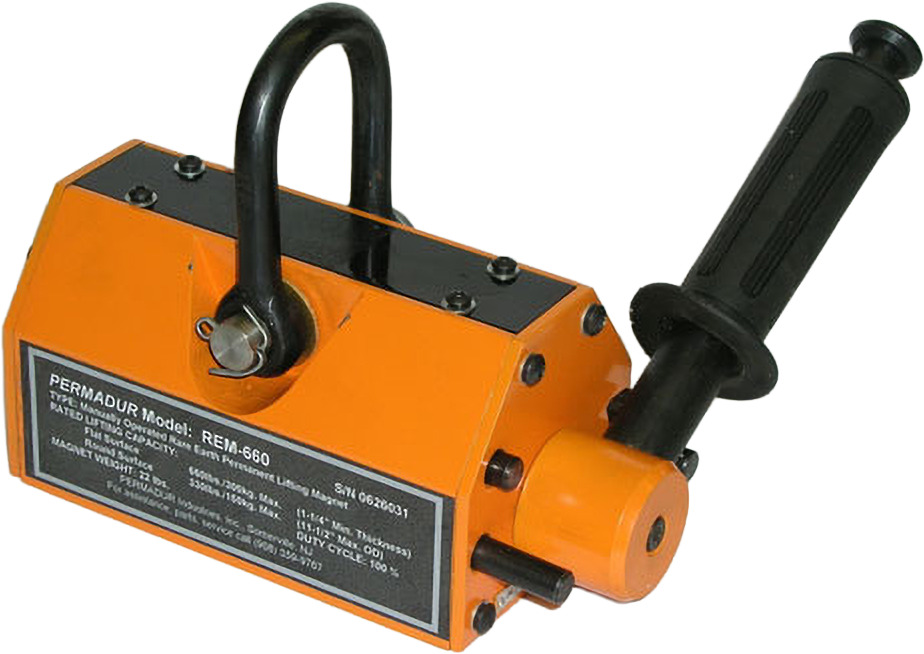

REM Series — Manual Rare Earth Lifting Magnets
Key Features
- Tremendous Magnet Capacity to Weight Ratio
- Simple Lever Operation with Safety Lock
- 3 to 1 Safety Factor
- Extremely Compact, Light, Portable
- Utilizes NdFeB — Most Powerful Permanent Magnetic Material
- VERY Economical
| Part Number | SWL Flat (lbs) | SWL Round (lbs) | Magnet Wt (lbs) | Body Size (W×L×H) | Headroom (in) | Min Thickness (in) | Max OD (in) |
|---|---|---|---|---|---|---|---|
| REM-250 | 250 | 110 | 7 | 2-9/16 × 3-5/8 × 2-3/4 | 4-1/2 | 1 | 8-1/2 |
| REM-660 | 800 | 330 | 22 | 3-1/2 × 6-1/2 × 3-3/4 | 6 | 1-1/4 | 11-1/2 |
| REM-1320 | 1,600 | 650 | 53 | 4-5/8 × 9-3/8 × 4-3/4 | 8-1/2 | 1-9/16 | 15-1/2 |
| REM-2200 | 2,500 | 1,100 | 110 | 6-7/8 × 10-5/8 × 6-5/8 | 11 | 2-3/8 | 17-1/2 |
| REM-5000 | 5,000 | 2,200 | 275 | 9-1/16 × 15 × 9-5/8 | 12 | 2-3/4 | 19-1/2 |
Rectangular Magnets — For Sheet, Plate, and Block
TP Series (8" Width)
| Model | Width (in) | Length (in) | Height (in) | Weight (lbs) | Max Potential Capacity (lbs) | Max Recommended Application (lbs) |
|---|---|---|---|---|---|---|
| TP-600 | 8 | 7¼ | 7¾ | 90 | 2,400 | 600 |
| TP-1000 | 8 | 10⅝ | 9 | 150 | 4,000 | 1,000 |
| TP-2000 | 8 | 21½ | 9 | 300 | 8,000 | 2,000 |
| TP-3000 | 8 | 32¼ | 9 | 450 | 12,000 | 3,000 |
| TP-4000 | 8 | 43 | 9 | 600 | 16,000 | 4,000 |
| TP-5000 | 8 | 53¾ | 9 | 750 | 20,000 | 5,000 |
| TP-6000 | 8 | 64½ | 9 | 900 | 24,000 | 6,000 |
| TP-7000 | 8 | 75¼ | 9 | 1,050 | 28,000 | 7,000 |
| TP-8000 | 8 | 86 | 9 | 1,200 | 32,000 | 8,000 |
| TP-9000 | 8 | 96¾ | 9 | 1,350 | 36,000 | 9,000 |
| TP-10000 | 8 | 107½ | 9 | 1,500 | 40,000 | 10,000 |
FP Series (16" Width)
| Model | Width (in) | Length (in) | Height (in) | Weight (lbs) | Max Potential Capacity (lbs) | Max Recommended Application (lbs) |
|---|---|---|---|---|---|---|
| FP-1200 | 16 | 7¼ | 9 | 180 | 4,800 | 1,200 |
| FP-4000 | 16 | 21½ | 9 | 600 | 16,000 | 4,000 |
| FP-6000 | 16 | 32¼ | 9 | 900 | 24,000 | 6,000 |
| FP-8000 | 16 | 43 | 9 | 1,200 | 32,000 | 8,000 |
| FP-10000 | 16 | 53¾ | 9 | 1,500 | 40,000 | 10,000 |
| FP-12000 | 16 | 64½ | 9 | 1,800 | 48,000 | 12,000 |
| FP-14000 | 16 | 75¼ | 9 | 2,100 | 56,000 | 14,000 |
| FP-16000 | 16 | 86 | 9 | 2,400 | 64,000 | 16,000 |
| FP-18000 | 16 | 96¾ | 9 | 2,700 | 72,000 | 18,000 |
| FP-20000 | 16 | 107½ | 9 | 3,000 | 80,000 | 20,000 |
Bipolar Magnets — For Rounds, Angles, Structural, and Plate
| Model | Width (in) | Length (in) | Height (in) | Weight (lbs) | Max Potential Capacity (lbs) | Max Recommended Flat (lbs) | Max Recommended Round (lbs) |
|---|---|---|---|---|---|---|---|
| BP-250 | 4⅜ | 7 | 8¾ | 45 | 1,200 | 300 | 250 |
| BP-400 | 6½ | 10⅝ | 8 | 70 | 2,000 | 500 | 400 |
| BP-500 | 4⅜ | 14¼ | 8¾ | 90 | 2,400 | 600 | 500 |
| BP-800 | 6½ | 22 | 8 | 140 | 4,000 | 1,000 | 800 |
| BP-1000 | 4⅜ | 28½ | 8¾ | 180 | 4,800 | 1,200 | 1,000 |
| BP-1200 | 6½ | 33 | 8 | 210 | 6,000 | 1,500 | 1,200 |
| BP-1600 | 6½ | 44 | 8 | 280 | 8,000 | 2,000 | 1,600 |
| BP-2000 | 6½ | 55 | 8 | 350 | 10,000 | 2,500 | 2,000 |
| BP-2400 | 6½ | 66 | 8 | 420 | 12,000 | 3,000 | 2,400 |
| BP-2800 | 6½ | 77 | 8 | 490 | 14,000 | 3,500 | 2,800 |
| BP-3200 | 6½ | 88 | 8 | 560 | 16,000 | 4,000 | 3,200 |
| BP-3600 | 6½ | 99 | 8 | 630 | 18,000 | 4,500 | 3,600 |
Need Help Selecting the Right Magnet?
Our experts can help you choose the perfect lifting solution for your specific application.
Get a QuoteElectrical Magnet Overview
Permadur Electro-Permanent Magnets combine permanent magnetic strength with electric switching convenience. They require power only for activation or release, maintaining a secure grip even in the event of power loss. Built for reliability, they deliver energy-efficient, fail-safe lifting with an excellent strength-to-weight ratio. Available with customer-supplied AC or rechargeable battery in any capacity.
Electrical Magnet Key Benefits
- Power required only for switching
- High strength-to-weight ratio
- Customizable pole shoes for varied applications
- Special Control options from ON/OFF pushbutton with safety indicator light to radio remote controls available
Electrical Magnet Types
Rectangular Magnets
(For Sheet, Plate, and Block Applications) This style of Electrically Controlled Permanent Lifting Magnet has the functionality to handle standard structural, plate, & block material.
Bipolar Magnets
(For Rounds, Angles, Structural, and Plate Applications) This unique style of Electrically Controlled Permanent Magnet has the functionality to handle standard structural / plate material but by adding customized pole shoes, the bipolar magnet can handle rounds and angle material as well.
Manual Magnet Overview
Permadur Manual Magnets provide dependable lifting through a simple lever design with integrated safety locks. Built with rare-earth materials, they deliver strong capacity in a compact, rugged form. They require no external power, making them ideal for shops, fabrication yards, and field use.
Manual Magnet Key Benefits
- No power required
- Rugged, low-maintenance design
- Lever control with safety lock
- Compact and portable
Manual Magnet Types
BPM Style Manual Magnets
REM Style Manual Magnets
Models
- Tri polar (TP) and Fivepole (FP) series of magnets for sheet, plate and block
- Bipolar (BP) series magnets for round, angles, structural, and plate
- REM/BPM for manual magnet applications
Use Cases
Trusted in production lines, automated handling systems, machine shops, and remote sites where reliable lifting is essential.
