Permadur Load Positioners
Permadur Load Positioners are designed to give operators precise, repeatable control when lifting and positioning heavy tools, dies, and components. Installed between the hoist and the load, a load positioner acts as a hydraulic link that allows fine adjustments — enabling placement within thousandths of an inch without damaging tooling or equipment.
Unlike standard hoists, which lift but lack precision, Permadur Load Positioners allow operators to accurately align and position loads safely and efficiently. This makes them ideal for applications where accuracy, safety, and repeatability are critical.
How a Load Positioner Works
A Permadur Load Positioner mounts directly between the hoist and the load hook. Once the load is suspended, the positioner allows controlled movement to fine-tune the load's position without repeated hoist jogging or manual force. This simplifies alignment, reduces setup time, and protects valuable equipment.
Permadur Load Positioners require no external power, making them easy to integrate into existing lifting systems.
Models & Capabilities
L Series
Lifting-only modelLL Series
Lifting and lowering modelKey Benefits
- Improves alignment accuracy and assembly quality
- Reduces damage to tooling, machines, and components
- Speeds up setup, positioning, and maintenance tasks
- Minimizes rework, scrap, and downtime
- Increases operator safety and reduces physical strain
Typical Applications
Permadur Load Positioners are widely used in industries that demand high-precision handling, including:
- Defense and Aerospace manufacturing
- Aeronautical and aviation assembly
- Tool-and-die handling
- Precision assembly and alignment
- Maintenance and installation of heavy equipment
Why Choose a Permadur Load Positioner?
By replacing trial-and-error positioning with controlled hydraulic movement, Permadur Load Positioners help operations work faster, safer, and more accurately. Loads align correctly the first time, equipment lasts longer, and productivity improves across the entire workflow.
Product Description
Overview
Permadur Load Positioners provide precise, repeatable control for lifting and lowering while protecting tooling and equipment. Acting as a hydraulic link between the hoist and the load, they enable positioning within thousandths of an inch. The Model L is designed for lifting only, while the Model LL offers both lifting and lowering capability. Available in capacities up to 40,000 lbs. with 3” to 12” stroke options, Permadur Load Positioners simplify alignment and reduce downtime.
Key Benefits
- Reduces machine and tooling damage
- Improves alignment, assembly speed, and quality
- Available in lift/lower and lower-only options
- Maintains ≤0.001” positioning accuracy
- 5 to 1 safety factor
- Requires no external power
Models
- L Series Load Positioner— lifting only model
- LL Series Load Positioner— lifting & lowering model
- Available in 3” to 12” Stroke Lengths
- Available in 1,000 lb. to 40,000 lb. Capacities
- Load Hook Automatically Resets
- Eliminates Hoist Jogging
Use Cases
Ideal for Airline/Aerospace industry, tool-and-die handling, precision assemblies, placement and operations requiring safe, accurate positioning.
Loadpositioner Specifications
Self-contained hydraulic precision positioning systems
Permadur Loadpositioner — Precision Load Control
Key Features
- Positioning to within .001"
- Lowering Speed 0-5 FPM Infinitely Variable
- Automatically Resets When Load Removed
- 3" to 12" Stroke Options
- 1,000# to 40,000# Capacity
- 3 to 1 Safety Factor
- Completely Self-Contained
- Requires No External Power
- No Installation Cost
- Eliminates Hoist Jogging

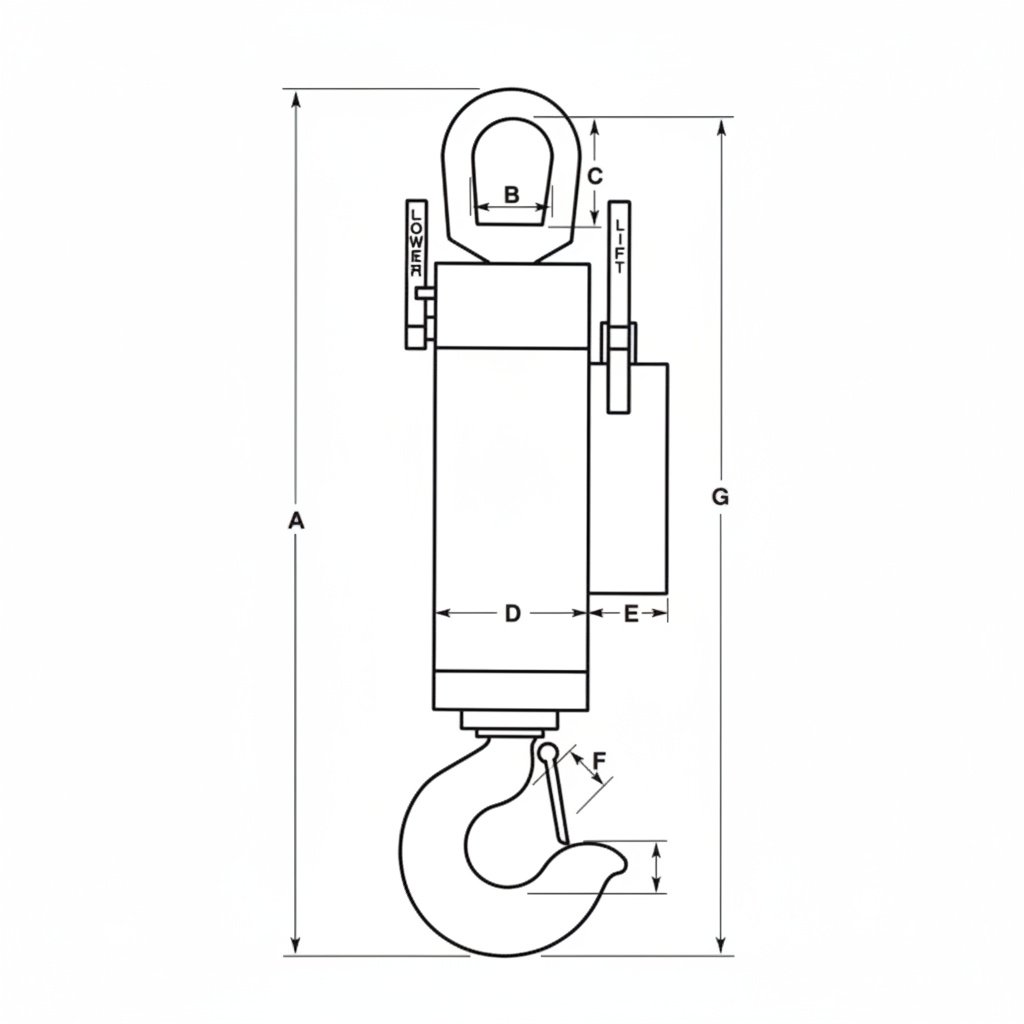

Dimension Reference (A-G) — Click to enlarge
Lowering Models (L Series)
| Model | Capacity Max | Capacity Min | Stroke | Weight | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|---|---|---|---|
| L-1-3 | 1,000# | 50# | 3" | 12# | 18 | 1 1/4 | 1 1/2 | 2 | N/A | 1 | 16 7/8 |
| L-5-3 | 5,000# | 150# | 3" | 28# | 18 3/16 | 1 3/4 | 2 3/8 | 3 1/2 | N/A | 1 1/8 | 16 1/2 |
| L-5-6 | 5,000# | 150# | 6" | 45# | 25 | 1 3/4 | 2 3/8 | 3 1/2 | N/A | 1 1/8 | 23 3/8 |
| L-5-12 | 5,000# | 150# | 12" | 60# | 31 5/8 | 1 3/4 | 2 3/8 | 3 1/2 | N/A | 1 1/8 | 30 |
| L-10-6 | 10,000# | 250# | 6" | 70# | 28 1/2 | 2 1/4 | 3 1/16 | 4 1/2 | N/A | 1 7/8 | 26 |
| L-10-12 | 10,000# | 250# | 12" | 95# | 35 1/2 | 2 1/4 | 3 1/16 | 4 1/2 | N/A | 1 7/8 | 33 |
| L-20-6 | 20,000# | 300# | 6" | 210# | 36 | 3 1/8 | 4 | 7 | N/A | 2 1/2 | 32 1/4 |
| L-20-12 | 20,000# | 300# | 12" | 260# | 44 3/4 | 3 1/8 | 4 | 7 | N/A | 2 1/2 | 41 |
| L-40-5 | 40,000# | 500# | 5" | 300# | 38 5/8 | 4 | 6 1/4 | 9 | N/A | 3 | 34 1/8 |
Lifting & Lowering Models (LL Series)
Additional LL Series Features
- All Standard Loadpositioner Features
- Lift Increments .005" Per Pump Stroke
- Positioning to within .001"
| Model | Capacity Max | Capacity Min | Stroke | Weight | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|---|---|---|---|
| LL-5-3 | 5,000# | 150# | 3" | 35# | 18 3/16 | 1 3/4 | 2 3/8 | 3 1/2 | 1 1/2 | 1 1/8 | 16 1/2 |
| LL-5-6 | 5,000# | 150# | 6" | 50# | 22 5/8 | 1 3/4 | 2 3/8 | 3 1/2 | 1 1/2 | 1 1/8 | 21 |
| LL-5-12 | 5,000# | 150# | 12" | 65# | 31 5/8 | 1 3/4 | 2 3/8 | 3 1/2 | 1 1/2 | 1 1/8 | 30 |
| LL-10-6 | 10,000# | 250# | 6" | 75# | 28 1/2 | 2 1/4 | 3 1/16 | 4 1/2 | 1 1/2 | 1 7/8 | 26 |
| LL-10-12 | 10,000# | 250# | 12" | 85# | 35 9/16 | 2 1/4 | 3 1/16 | 4 1/2 | 1 1/2 | 1 7/8 | 33 |
| LL-20-6 | 20,000# | 300# | 6" | 220# | 36 3/4 | 3 1/8 | 4 | 7 | 1 1/2 | 2 1/2 | 32 3/16 |
| LL-20-12 | 20,000# | 300# | 12" | 270# | 44 3/4 | 3 1/8 | 4 | 7 | 1 1/2 | 2 1/2 | 40 7/8 |
| LL-40-5 | 40,000# | 500# | 5" | 310# | 38 5/8 | 4 | 6 1/4 | 9 | 1 3/4 | 3 | 34 1/8 |
Need Help Selecting the Right Loadpositioner?
Our team can help you choose the perfect model for your precision positioning needs.
Contact Us TodayMedia

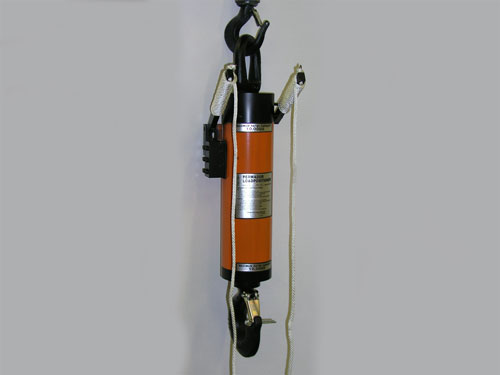

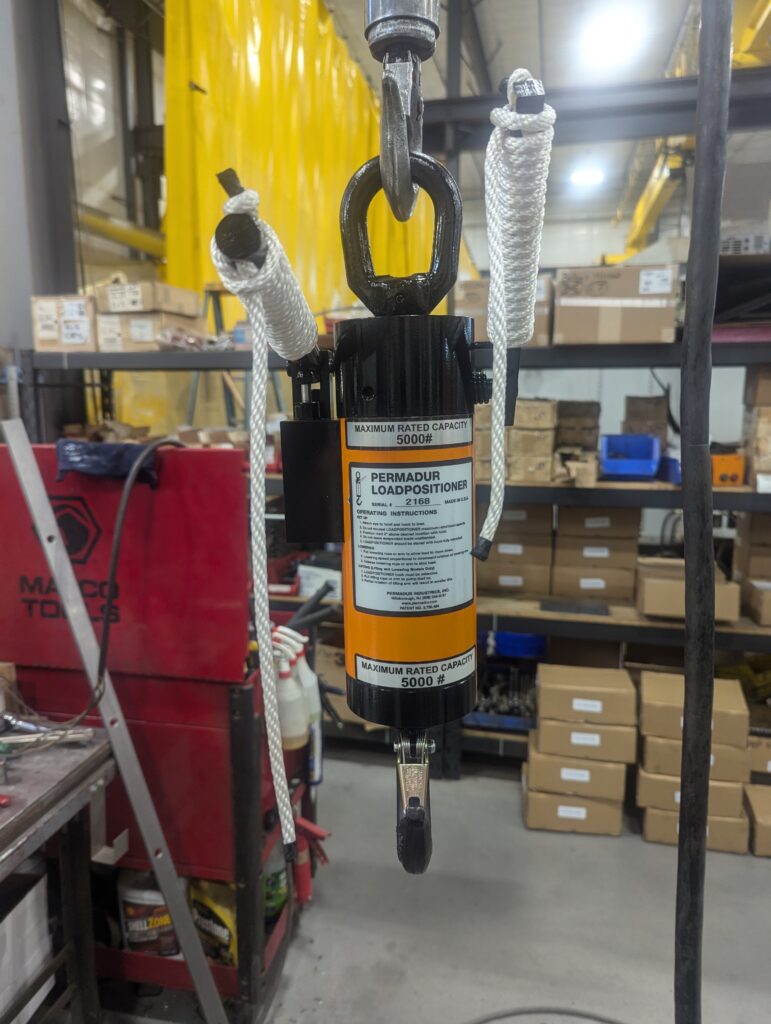

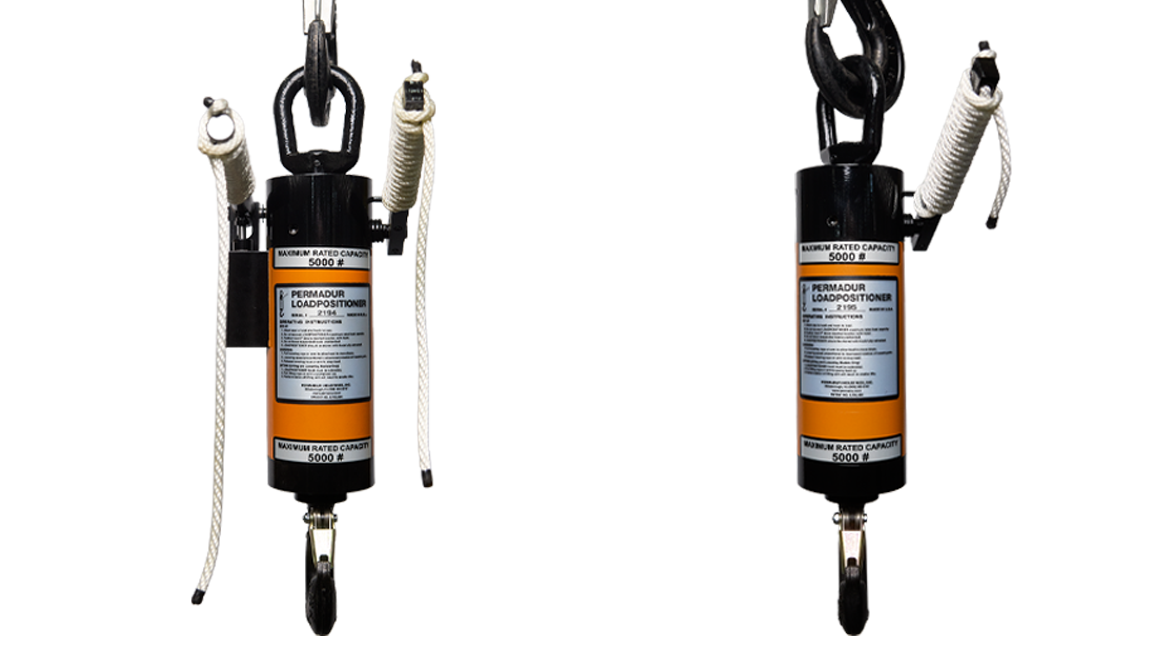

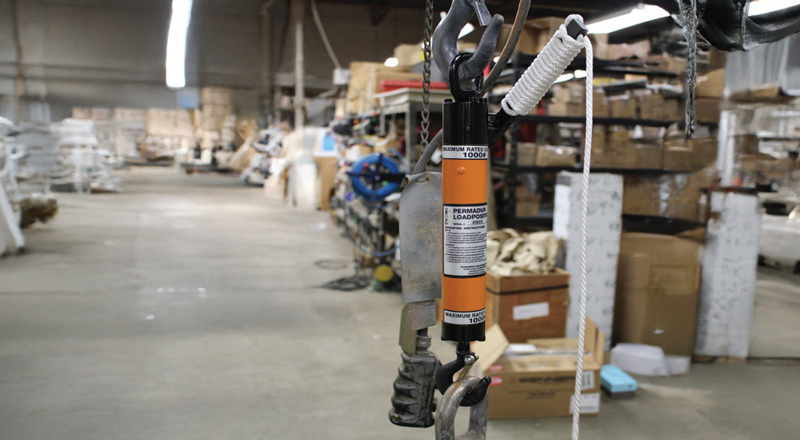

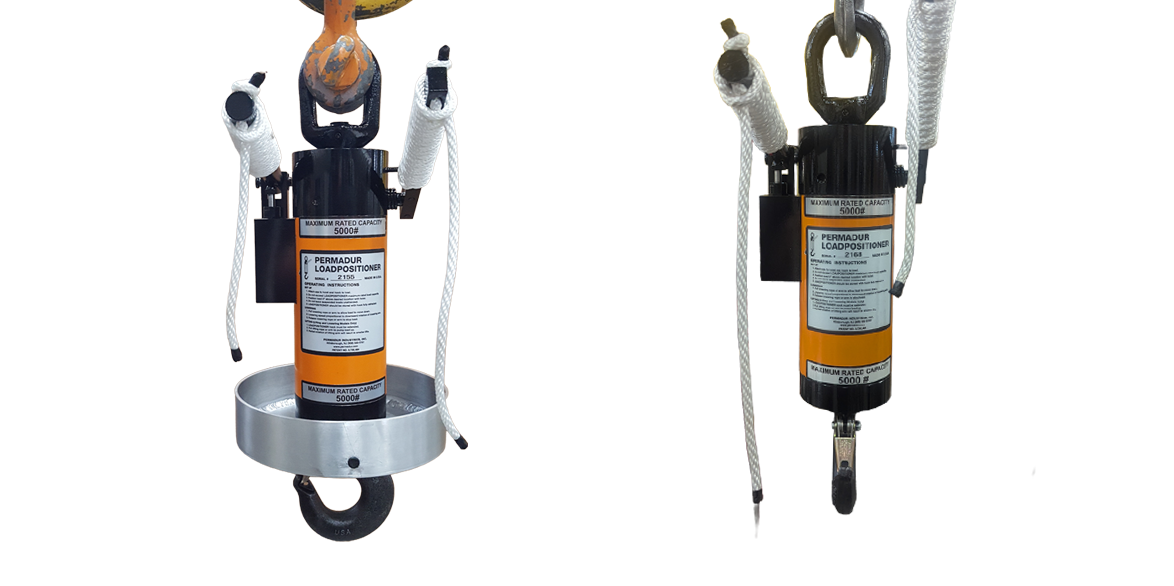

Click to view full-size images.
Problem / Cause / solution / benefit
